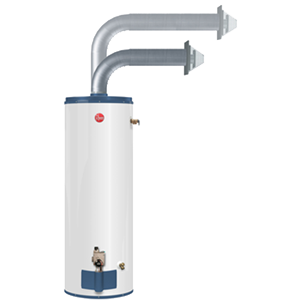

Fury Direct Vent Gas Water Heaters
- Adjustable coaxial vent allows flexibilty of installation - uses outside air for combustion and requires no electrical power
- Aluminum vent and cap base to prevent staining of building exterior
- Brass drain valve
- Factory installed temperature and pressure relief valve
- R-Foam® insulation temperature and pressure relief valve
- Exclusive Rheemglas® tank lining resists corrosion and prolong tank life
- Heat saving flue baffle design
- Gas control combinationthermostat
- Piezo Ignition
- Patented magnesium anode rod design incorporates a special resistor that protects the tank from corrosion
- High temperature silicone bands reduce venting installation time
- Internal air tube for reduced footprint
- Meets ANSI Z21.10.1 requirements for Flammable Vapor Ignition Resistance (FVIR)
- Meets or exceeds Naitonal Appliance Energy Conversation Act (NAECA) requirements
Model ID | Model Name | Gas Input in Thous. BTU/Hr. Nat. | Gas Input in Thous. BTU/Hr. LP | Recovery in G.P.H. 90 | Recovery in G.P.H. 90 | First Hour Del. G.P.H. Nat. | First Hour Del. G.P.H. LP | Ht. to Vent | Tank Ht. | Diam. | Ht. to Gas Conn. | Vent Size | Ht. to Side T | Ship Wt. (lbs) |
---|
1922 | 22DV40F | 38 | 30 | 38.4 | 30.3 | 66 | 64 | 68.25 | 59.75 | 19.75 | 14.25 | 6 | 51.625 | 155 |
1923 | 22DV50F | 38 | 34 | 38.4 | 34.3 | 80 | 79 | 68 | 59.5 | 21.75 | 14.25 | 6 | 52.5 | 165 |
10-year tank and 10-year parts warranties available
