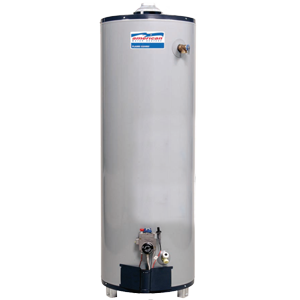

American Conventional Vent Gas Water Heaters

The Flame Guard Safety System reduces the risk of accidental fires involving flammable vapors from products such as gasoline, paint thinner, and solvents. With a standard right-hand thread thermocouple, resettable thermal safety switch and larger sight-glass, the Flame Guard Safety System is better than ever.

  • Flame Guard Safety System
  • Combustion Safety Cut-off Switch
  • Combination Thermostat/ECO with factory-preset pressure regulator
  • Lint Resistant Design
  • Simple Piezo Igniter
  • Durable and Efficient Burner Construction
  • Anode Rod - Top-mounted, heavy-duty anode protects tank against corrosion, extending the life of the tank
  • Dip Tube carries cold inlet water deep into the tank to minimize temperature dilution of hot water
  • Fully Automatic Controls
  • 1" Non-CFC Foam Insulation
  • Factory Installed Heat Traps Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
  • Protective Magnesium Anode Rod
  • Fused Ceramic Shield Tank for anti-corrosion protection
  • T&P Relief Valve
  • Brass Drain Valve


Model IDModel NameTypeGallon
Cap.
MBH Input
NG
MBH Input
LP
GPH Rec.
NG - LP
Energy
Factor.
Vent
Dia
Hgt x Dia.Weight
2644BFG61-30S30-3NOVShort3030.029.030.4 - 29.40.61318 x 45.7599
2645BFG61-30T30-3NOVTall3030.029.030.4 - 29.40.61316 x 56.598
2646BFG61-40S40-3NOVShort4040.036.040.5 - 36.50.59320 x 49132
2647BFG61-40T40-3NOVTall4040.036.040.5 - 36.50.59318 x 58.75127
2648BFG61-50T40-3NOVTall5040.040.040.5 - 36.50.58320 x 57.5148
2649BFG61-50T50-4NOVTall5050.047.050.7 - 47.60.58420 x 57.5148
2650BFG62-40S40-3NOVShort4040.036.040.5 - 36.50.62322 x 49146
2651BFG62-40T40-3NOVTall4040.036.040.5 - 36.50.63320 x 58.75132
2652BFG62-50T40-3NOVTall5040.040.040.5 - 36.50.62322 x 57.5155
2653FVG62-50T65-4NOVTall5065.055.066.5 - 56.30.58422 x 59.5195
2654BFG62-50T50-4NOVTall5050.047.050.7 - 47.60.60422 x 57.5155
  • 6 Year Warranty Options On Tank
  • 6 Year Component Part Warranty
