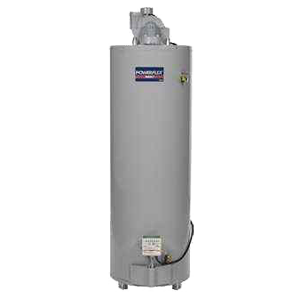

American Power Direct Vent Gas Water Heaters

Ideal for homeowners desiring thru-the wall/thru-the-roof venting of combustion products. Air is drawn from outside and exhaust gases are vented outside. This reduces the risk of accidental fires involving flammable vapors.

Direct Vent With 2 or 3 inch PVC
Self-Diagnostic Control System Microprocessor control provides diagnostic codes in case of system malfunction, and directs burner ignition to extend the ignitor's life
Quiet and Efficient Blower Factory installed 6-foot power cord with standard 3-prong male connector provided. Electrical requirements; 110/120 VAC power source, less than 5 amp draw
Combination Thermostat/ECO with factory-preset pressure regulator
Hot Surface Igniter

Durable and Efficient Burner Construction

Anode Rod - Top-mounted, heavy-duty anode protects tank against corrosion, extending the life of the tank
Dip Tube carries cold inlet water deep into the tank to minimize temperature dilution of hot water
Fully Automatic Controls

2" Non-CFC Foam Insulation

Factory Installed Heat Traps

Protective Magnesium Anode Rod

Fused Ceramic Shield Tank for anti-corrosion protection

T&P Relief Valve

Brass Drain Valve

Model ID	Model Name	Gallon Capacity	MBH Input NG	MBH Input LP	GPH Rec. NG - LP	Energy Factor	Vent Dia.	Hgt x Dia	Weight
2655	PDVG62-40T42-NV	40	42.0	42.0	42.6 - 42.6	0.66	2 or 3	20 x 66.9	170
2656	PDVG62-50T42-NV	50	42.0	42.0	42.6 - 42.6	0.66	2 or 3	22 x 65.6	207
2657	PDVG62-50T60-NV	50	60.0	50.0	60.8 - 50.7	0.66	3	22 x 65.6	207

6 Year Warranty Options On Tank

6 Year Component Part Warranty

Download Spec Sheet

Download Installation Guide
