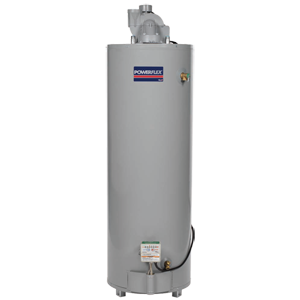

American Direct Vent Gas Water Heaters

The industry's first flammable vapor ignition resistant (FVIR) approved power vented gas water heater is better than ever. These highly efficient water heaters have a .66 Energy Factor, with a smaller footprint allowing installation in an approved drain pan

Power Vent With 2 or 3 inch PVC
Self-Diagnostic Control System Microprocessor control provides diagnostic codes in case of system malfunction, and directs burner ignition to extend the ignitor's life
Quiet and Efficient Blower Factory installed 6-foot power cord with standard 3-prong male connector provided. Electrical requirements; 110/120 VAC power source, less than 5 amp draw
Combination Thermostat/ECO with factory-preset pressure regulator
Hot Surface Igniter

Durable and Efficient Burner Construction

Anode Rod - Top-mounted, heavy-duty anode protects tank against corrosion, extending the life of the tank
Dip Tube carries cold inlet water deep into the tank to minimize temperature dilution of hot water
Fully Automatic Controls

2" Non-CFC Foam Insulation

Factory Installed Heat Traps

Protective Magnesium Anode Rod

Fused Ceramic Shield Tank for anti-corrosion protection

T&P Relief Valve

Brass Drain Valve

Model ID	Model Name	Gallno Capacity	MBH Input NG	MBH Input LP	GPH ec. NG - LP	Energy Factor	Vent Dia.	Hgt x Dia	Weight
2658	PVG62-40T42-NV	40	42.0	42.0	42.6 - 42.6	0.66	2 or 3	66.9 x 20	170
2659	PVG62-50T42-NV	50	42.0	42.0	42.6 - 42.6	0.66	2 or 3	65.6 x 22	207
2660	PVG62-50T60-NV	50	60.0	50.0	60.8 - 50.7	0.66	3	65.6 x 22	207
2661	PVG62-75T75-3NV	75	75.1	75.1	76.1 - 76.1	na	3	70.25 x 26	265

6 Year Warranty Options On Tank

6 Year Component Part Warranty

40, 50 Gallon Spec Sheet

75 Gallon Spec Sheet
