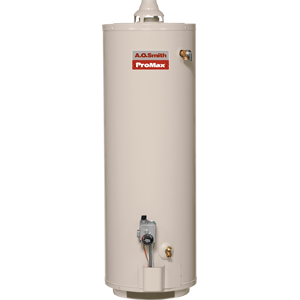

ProMax Residential Gas Water Heater

The ProMax family offers a wide range of water heating solutions - from models that help you qualify for gas utility rebates to high recovery models ideal for large families with high demand for hot water. All ProMax water heaters are engineered to help lower your energy bills and provide exceptional reliability.

FVIR Technology That Protects Against Accidental Ignition of Flammable Vapors
Green Choice Gas Burner Produces 33% Lower NOx Emissions Than Standard Burners
Self-cleaning DYNACLEAN Dip Tube Helps Prevent Lime and Sediment Buildup
Permaglas Glass Coating Protects steel tank from rust
Tamper-resistant Brass Drain Valve
Piezo Igniter for Easy One Hand Pilot Ignition
Does Not Require Power To Operate

Model ID	Model Name	Type	Input MBH	Gallon Capacity	EF	First Hour Gallons	Recovery GPH 90dF	R-Value	HxDia.	Weight
499	GCV-30	Tall	40.0	28	.62	66	41	8	55.25x16	112
500	GCV - 40	Tall	40.0	38	.60	71	39	8	53.25x18.5	126
501	GCVL-30	Short	40.0	30	.61	66	40	8	43.75x18.5	122
506	GCV - 50	Tall	40.0	50	.58	91	41	8	56.5x20	160
507	GCVL-40	Short	40.0	40	.59	71	41	8	47.25x20	139
29398	GCVL-50	Short	40.0	50	.58	80	41	16	48.75x24	168

6-Year Limited Warranty The Tank and Functional Parts
