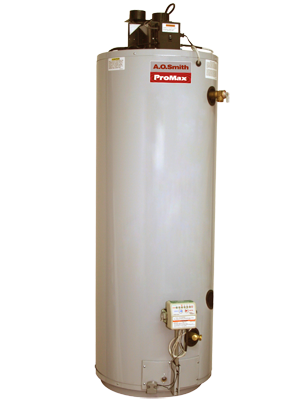

ProMax Residential Gas Water Heater

The ProMax Power-Vent 40 and 50-gallon residential gas water heaters are equipped with A. O. Smith's patented C3 Technology design, and meet Phase II of the ANSI Z21.10.1 standards for flammable vapor ignition resistance. In addition A. O. Smith has engineered other enhancements into its power-vent design, for easier installation and maximum venting flexibility. A power-vent water heater provides an alternative to conventional vertical-vent models, which require the use of a metal vent. They provide a solution to potential venting problems in replacement applications and offer versatile options for placement of gas water heaters in residential new construction.

  • Versatile Power-Vent Design
    • 40 and 50 gallon models vent
    using 2", 3" or 4" Schedule 40 PVC, CPVC or ABS pipe
  • System versatility allows combined horizontal and vertical vent runs up to 120 equivalent feet with 3 in. pipe, up to 160 equivalent feet with 4 in. pipe on 40,000 BTU and 50,000 BTU models
  • Intelli-Vent Gas Control
  • Silicone Nitride Ignitor no standing pilot
  • Advanced electronics for more precise control of water temperature and easy to understand system diagnostics
  • Power-Vent Blower with 6 foot cord standard
  • FVIR Technology That Protects Against Accidental Ignition of Flammable Vapors
  • Green Choice Gas Burner Produces 33% Lower NOx Emissions Than Standard Burners
  • Self-cleaning DYNACLEAN Dip Tube Helps Prevent Lime and Sediment Buildup
  • Permaglas Glass Coating Protects steel tank from rust
  • Tamper-resistant Brass Drain Valve


  • water heater
    water heater TIG C3
    Model IDModel NameInput
    MBH
    Gallon
    Capacity
    EFFirst Hour
    Gallons
    Recovery
    GPH 90dF
    R-ValueHxDia.Wieght
    29399GPVH-4040.040.656944863x18.5157
    29400GPVH-5040.050.658344865x20177
    29401GPVR-4040.040.6770441663x20.5166
    29402GPVR-5040.050.6783441656.75x22186
    29403GPVT-4050.040.6580531663x20.5166
    29404GPVT-5050.050.6583531665x22186
    29405GPVX-5062.550.65114661665x22186
    29406GPS-7580.074nana861266x25.5245
    Model IDModel NameTotal Vent Lgth
    2 In. Pipe
    Total Vent Lgth
    3 In. Pipe
    Total Vent Lgth
    4 In. Pipe
    29399GPVH-4040120160
    29400GPVH-5040120160
    29401GPVR-4040120160
    29402GPVR-5040120160
    29403GPVT-4040120160
    29404GPVT-5040120160
    29405GPVX-50na80120
    29406GPS-75na30100
    • 6-Year Limited Warranty The Tank and Functional Parts
