Versatile and Compact Commercial Water Heating

Endless hot water for high-volume use.

UMC-117 remote control is included and can be set up to 180 degrees
EZ-Link cable available for high demand applications to connect two tankless units to operate as one
Exclusive! Guardian SBT sensing burner technology
Exclusive! Guardian OFW overheat film wrap
Exclusive! All Rheem models can be linked in up to 20 unit manifold installations by using the optional MIC-180 and MICS-180 manifold control assembly
Category III stainless steel vents and vent horizontally or vertically
Supplied with a 120 volt power cord
Natural Gas or Propane
Environmentally friendly Low NOx burner
Direct electronic ignition - no pilot light
On-Board diagnostics and safety monitoring
Interior sealed combustion units - do not use interior combustion air
Indoor and outdoor models feature freeze protection to -20F

Click Image for Larger View

Model ID	Model Name	Input Range MBtuH	Energy Factor	Vent Type	Vent Diameter	Temp. Range	FLow Rate Max.	HxWxD	Weight

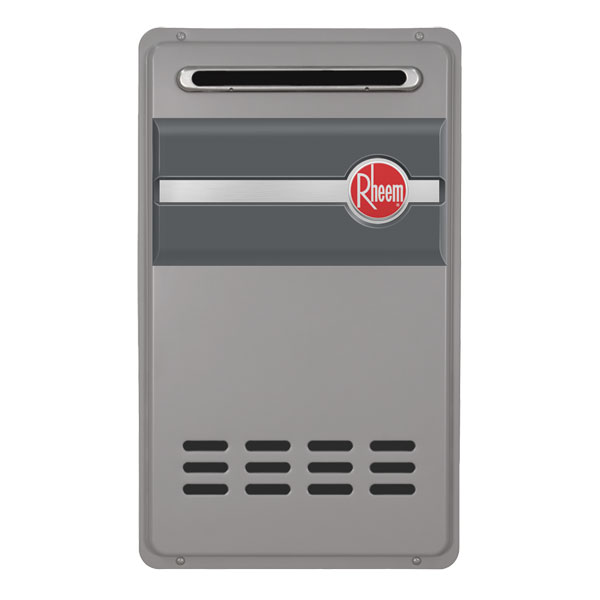

2290	RTG-66XN	11.0 - 180.0	.82	Exterior	na	85 - 185	8.4	25.6x13.9x9.9	54

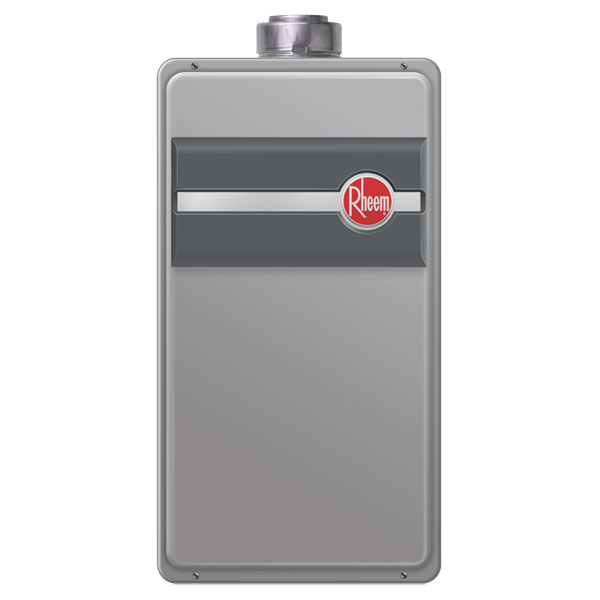

2291	RTG-66DVN	11.0 - 180.0	.82	Concentric	3 by 5	85 - 185	8.4	25.6x13.9x9.9	54

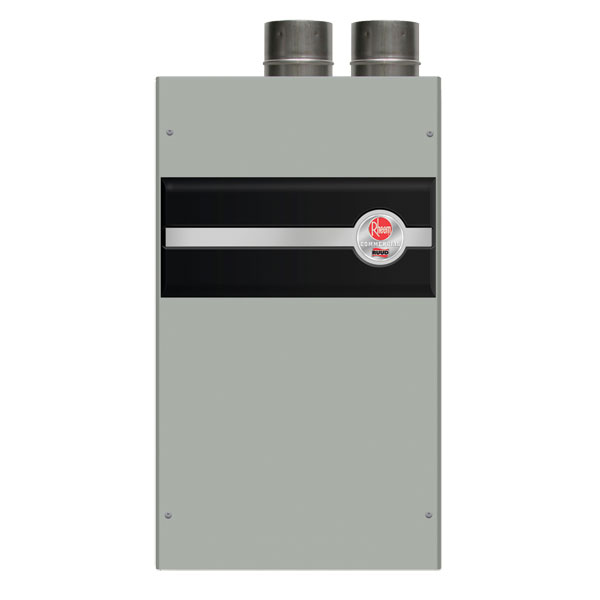

2295	GT-199DVN-1	19.0 - 199.9	.82	2 Pipe	4	100 - 180	8.5	25.3x14.9x11.1	55

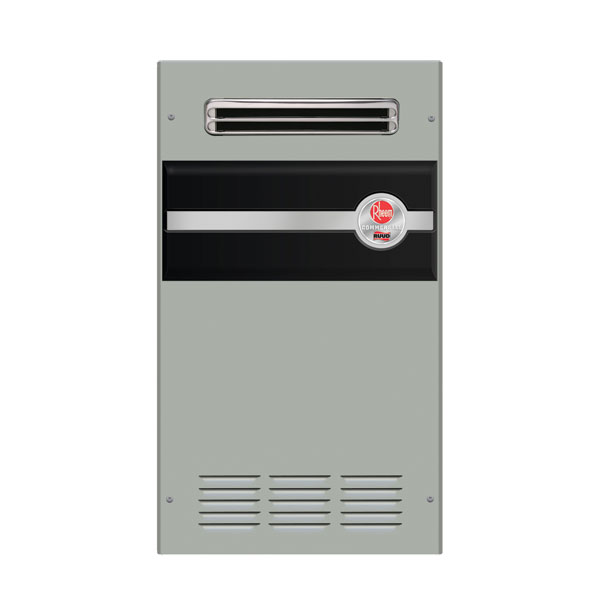

2296	GT-199XN-1	19.0 - 199.9	.82	Exterior	va	100 - 180	8.5	25.3x14.9x11.1	55

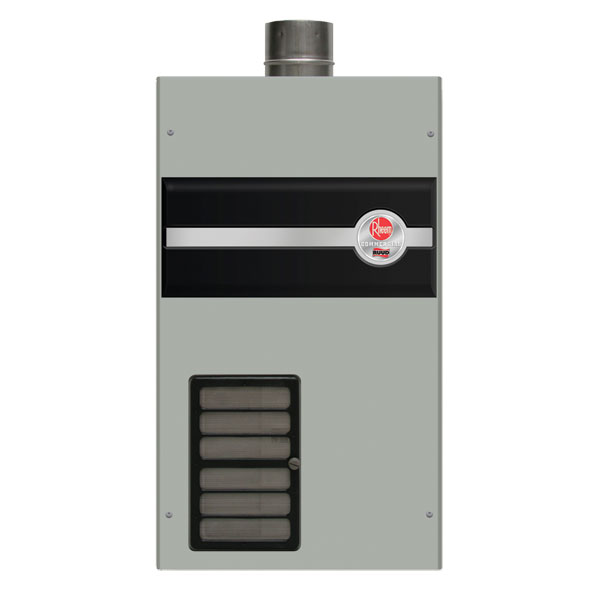

2297	GT-199PVN-1	19.0 - 199.9	.82	1 Pipe	4	100 - 180	8.5	25.3x14.9x11.1	55
