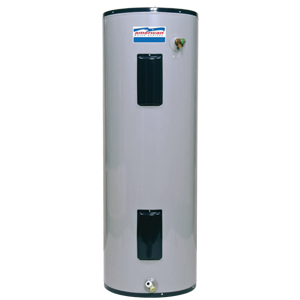

American Standard Electric Water Heaters

All residential electric water heaters have the Fused Ceramic Shield lining, a tough, thick, durable coating of ceramic that is fused to the tank's interior surface at 1600dF, forming a corrosion-resistant lining for years of dependable protection and use.

  • Dual Heating Elements Screw-in, direct immersion, 4500-watt, 240-volt heating elements
  • Non-CFC Foam Insulation
  • Thermostat/High Limit Control Combination control allows adjustment of water temperature
  • Lint Resistant Design
  • Simple Piezo Igniter
  • Anode Rod - Top-mounted, heavy-duty anode protects tank against corrosion, extending the life of the tank
  • Dip Tube carries cold inlet water deep into the tank to minimize temperature dilution of hot water
  • Fully Automatic Controls
  • Protective Magnesium Anode Rod
  • Fused Ceramic Shield Tank for anti-corrosion protection
  • T&P Relief Valve
  • Brass Drain Valve


Model IDModel NameGallon
Capacity
GPH Recovery
90dF Rise
Energy
Factor
Diameter X
Height
Weight
2662E62-30H-045DV4020.70.9218 x 59102
2663E62-40R-045DV5020.70.9120 x 58.5115
2664E62-40H-045DV5020.70.9020 x 50113
2665E61-50R-045DV3020.70.9318 x 45.2577
2666E62-50H-045DV6620.70.9022 x 59.25152
2667E62-65H-045DV8020.70.8724 x 59.25191
2668E62-80H-045DV11920.70.8328 x 61.5278
2669E62-119R-045DV4020.70.9220 x 47.2592
2670E63-50R-045DCV5020.70.9322 x 59.25134
2671E63-50H-045DOV5020.70.9324 x 47..75142
  • 6 Year Warranty Options On Tank
  • 6 Year Component Part Warranty
