SolPak Active Solar Water Heating System

Free & Natural. It's the way you've always wanted to shower. With a Rheem solar hot water system it's more than just a feeling. It's a fact of life, and it's yours to enjoy everyday.

Rheem solar slim solar panels on your roof will do it. As the water circulates, the sun heats it naturally so you get luxurious hot water heated free from the sun. On tap. Everyday. Now that's what you call Free & Natural! Hot water which saves on energy, saves on water heating costs and helps save the environment too.

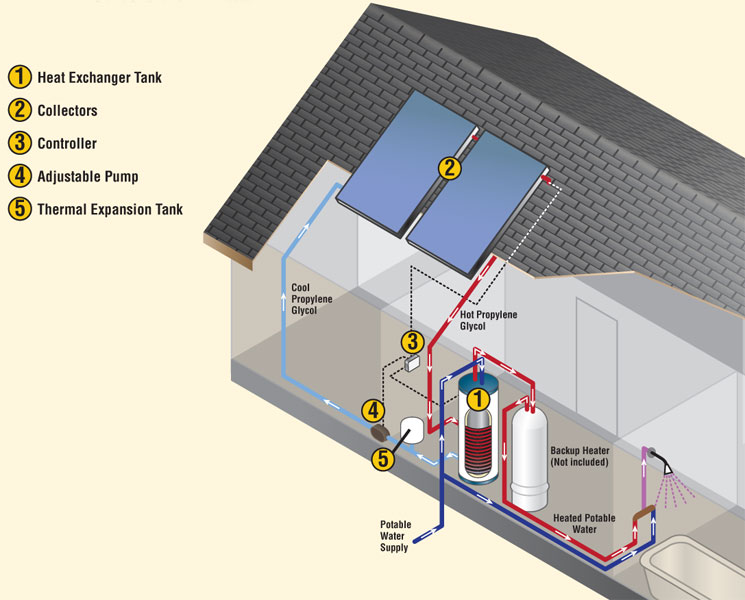

  • The System:
    • Closed loop glycol design
    for use in colder climates
  • Double collector systems
  • Solaraide heat exchanger tank

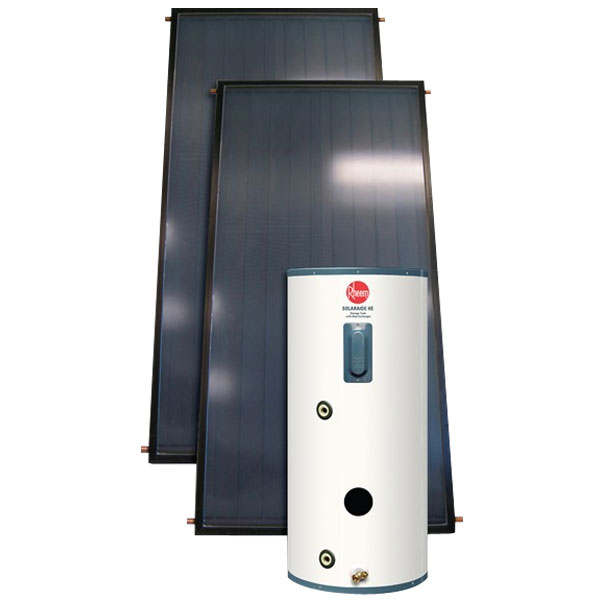

  • Solar Panels (2) two collector sizes available
  • System Controller
  • Mixing Valve
  • Thermal Expansion Tank for glycol loop
  • Heat Exchanger Tank Features:
    • Double wall heat exchanger:
    copper tubing wrap-around design
  • Single Electric Element backup heating source
  • 3/4" Connections for water and collector loop
  • Collectors:
    • Two sizes:
    3' x 8' and 4' x 8'
  • Flat plate design
  • Black paint absorber coating

  • Click Image for Larger View

    Rheem logo Energy Star
    Model IDModel NameEFCollector
    HxWxD
    Collector
    Qty
    Gross Area
    Sq. Ft.
    Collector
    Weight
    Design Flow
    Rate GPM
    Tank
    Hgt. X Dia.
    Element
    Watts
    Weight
    28754RS80-48BP2.698.25x36.1x3.25224.6800.6258.75x24.54500222
    28755RS120-64BP3.298.25x48.1x3.25232.81060.8362x28.254500380
  • 10 Year Limited Collector Warranty
  • 6 Year Limited Tank Warranty
  • 2 Year Limited Pump and Control Warranty
